1、產品描述 Product description

　　測試樁用于陰極保護參數的檢測,用來測量陰極保護系統的主要分布點的陰極保護電位、電流、接地電阻，絕緣裝置的電絕緣性能，監測陽極運行狀態等重要參數的測量裝置。本裝置裝有6個接線柱,可以根據設計單位的具體要求方便地組成電位、電流、犧牲陽極、絕緣性能測試樁或交叉管道測試樁等。測試樁由樁體、測試接線板、測試導線和銘牌等幾部分組成。

　　The test pile is used to detect the parameters of cathodic protection, and is used to measure the cathodic protection potential, current, grounding resistance of the main distribution points of the cathodic protection system, the electrical insulation performance of the insulation device, and the measurement device for monitoring the operation state of the anode and other important parameters. The device is equipped with 6 terminals, which can be easily composed of potential, current, sacrific anode, insulation performance test pile or cross pipe test pile according to the specific requirements of the design unit. The test pile is composed of pile body, test wiring board, test wire and nameplate.

　　2、測試樁的分類Classification of test piles

　　按材質分:鋼質測試樁、水泥測試樁、塑料測試樁、玻璃鋼測試樁。鋼質測試樁又分為碳鋼測試樁和不銹鋼測試樁。

　　According to the material: steel test pile, cement test pile, plastic test pile, FRP test pile. Steel test pile is divided into carbon steel test pile and stainless steel test pile.

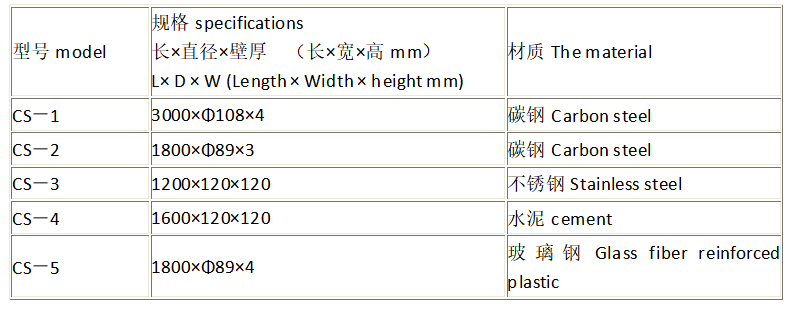

　　3、常用測試樁型號規格Common test pile models and specifications

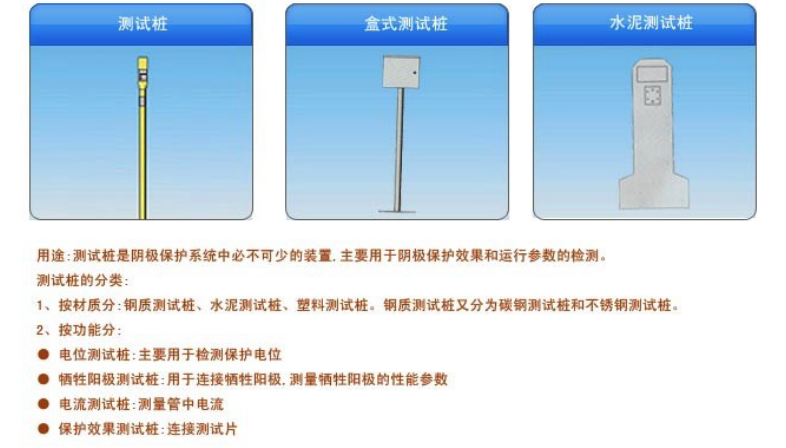

　　4、參考圖片Reference pictures
